| SPECIFICATION | ||

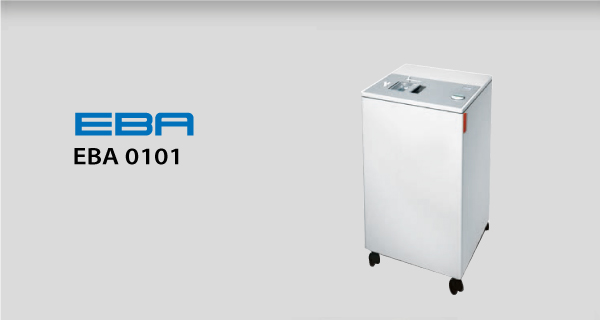

| >Model | 0101 HDP | |
| >Suitable for hard drives | 2,5“ / 3,5“ | |
| >For discarded hard drives from | PCs/notebooks/printers/copiers | |
| >Security level DIN 66399 | H-3 | |
| >Adjustable feed chute constructed of high quality steel | • | |
| >Single feed | • | |
| >Punching die from hardened, nickel-plated steel | • | |
| >Destroys mechanical components, PC board and hard disc | • | |
| >Punching cycle (per hard drive) | 15 seconds | |
| >LEDs for illuminating the feed chute | • | |
| >Slider mechanism for unloading punching compartment | • | |
| >Sturdy plastic bin for destroyed hard drives | • | |
| >Collection bin with weight sensor | • | |
| >High-quality wooden cabinet, mobile on castors) | • | |
| >Power connection, volts / Hz (single phase) | 230 / 50 / 1~ | |
| >Motor capacity, W | 640 | |
| >Suitable for continuous operation | • | |
| >Control element | EASY-SWITCH | |
| >SPS Safety Protection System: | • | |
| >– Hinged safety flap for the feed chute | electronically controlled | |
| >– Jam protection for punching die with automatic reverse | • | |
| >– Automatic stop after punching process | • | |
| >– Automatic shut-off when the collection bin is full | • | |
| >– Electronic door protection | • | |
| >– Double motor protection | • | |
| >Dimensions, mm (H x W x D) | 850 x 495 x 470 | |
| >Weight, kg | 63 | |
